Redundant multi format data acquisition

Overview

What is CAPS?

About

The Common Acquisition Protocol Server (CAPS) was developed to fulfill the needs to transfer multi-sensor data from the station to the data center. As nowadays more and more stations with co-located sensors like broadband seismometers, accelerometers, CGPS, temperature sensors, video cameras, etc. are build up, a acquisition protocol is required, which can efficiently handle low- and high-sampled data through one unified protocol. Such a flexible acquisition protocol is available with CAPS. CAPS is also a backbone for secure and redundant data centers.

Application

  • Real-time data transmission from remote sensors to data center,
  • Long-term data archiving,
  • Provision of real-time or archived data to remote clients via CAPS, FDSNWS, or Winston Wave Server (WWS) protocol,
  • Center to center data transfer,
  • Secured and redundant data centers with high availability.

Features

  • Multi-sensor data transfer, e.g. miniSEED records, webcam images, GNSS, tidegauge data,
  • Redundant data transmission,
  • Ensures timeliness of data,
  • On-the-fly reconfiguration without restarting,
  • Lightweight protocol for minimized packet overhead,
  • Archived and real-time data served through one protocol and one connection,
  • Reliable data transfer, retransmission of data in case of network outage or server restart,
  • Interactive web interface for server monitoring, data review, and data download,
  • Secure communication via SSL,
  • Fine-grained access control,
  • Connectivity to the SeisComP framework.

Brochure Demo Documentation

Details

Timeliness of data

The focus on early warning in the last decade gave the timeliness of data. This made it necessary to allow backfilling of data (send most recent data first) as well as reducing the size of the data records. These requirements for data acquisition cannot be fulfilled by many standard software packages. For example SeedLink, the de facto standard for real-time data transmission widely used for transmitting seismic data, can neither handle backfilled data nor does it support a variable record size. CAPS fills this gap as it is format independent allowing to handle low and high sampled data in parallel while keeping track of the timely order of packets.

media/redundancy.png

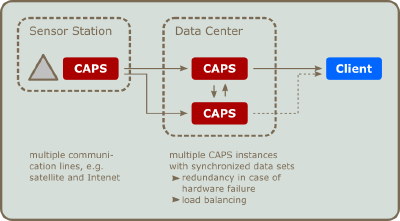

Redundancy concept

Redundancy

In the last years one topic became a focal point of interest - redundancy. CAPS allows to fetch data packets through several connections in parallel, for example through a satellite line and Internet. Once the data is transmitted to CAPS, it is merged with the already available data set where duplicates are dropped. This allows full redundancy in data transmission and the only single point of failure left is the equipment at the station itself.

Reconfiguration

One of the main problem for institutions handling massive data is the downtime during reconfiguration. CAPS reduces the downtime to an absolute minimum and at the same time takes care that no gaps or redundant data occur. This is realized through wildcard requests by clients. Wildcard request means, that CAPS can request all data available at the source and doesn’t need a specific list of stations. Once the source adds a station, the data is directly transmitted to the target without the need to reconfigure or restart CAPS. CAPS furthermore supports the live reconfiguration of access control parameters without service interruption.

media/architecture.png

Architecture

Architecture

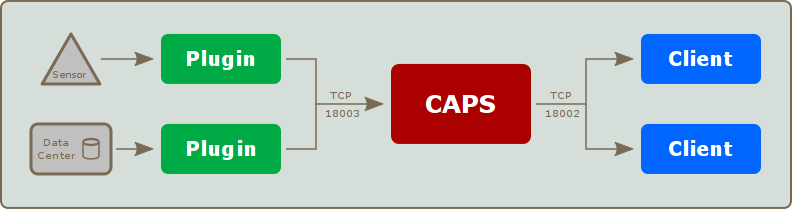

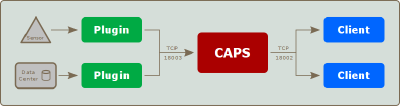

Figure Architecture shows the architecture of CAPS. The central component is the server, which receives data from sensors or other data centers, stores it into an archive and provides it to connected clients. The connection between a data provider and CAPS is made through a plugin.

Plugins are independent applications which, similar to clients, use a network socket to communicate with the server. The advantages of this loose coupling are:

  • Plugins may be developed independently and in a arbitrary programming language
  • A poorly written plugin does not crash the server
  • Plugins may run on different machines
  • Plugins may buffer data in case the server is temporarily unavailable
media/deployment.png

Deployment

Deployment

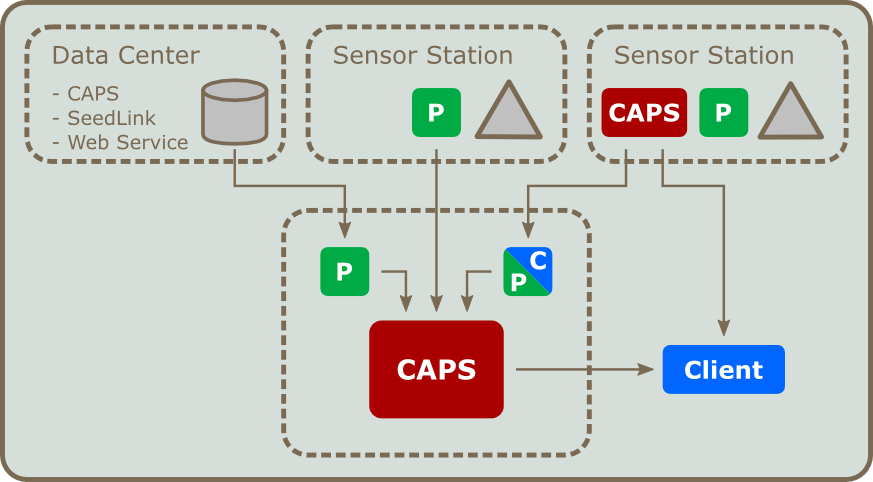

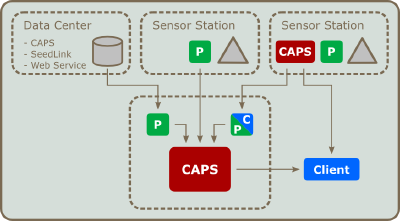

Figure Deployment illustrates a possible deployment of CAPS and its plugins. The acquisition of data from other data centers is most likely done through a public interface reachable over the Internet. For this center-to-center communication a plugin is typically launched on the receiving site to feed the local CAPS server.

For the direct acquisition of data from a sensor the plugin can run on the sensor station. This plugin will send the data either directly to the data center or to a local CAPS instance. The advantage of the second approach is:

  • Better protection against data loss: In case of a connectivity problem a local CAPS will store observations to the hard drive for later retrieval.
  • Direct client access: A client may directly receive data from the sensor station.
  • Less packet overhead: The CAPS client protocol is more lightweight than the plugin protocol. A client packet only consists of a two byte header followed by the data.

The ability to connect different CAPS instances simplifies sharing of data. One protocol and one implementation is used for the sensor-to-center and center-to-center communication. In the same way multiple CAPS instances may be operated in one data center on different hardware to create backups, establish redundancy or balance the server load.

Web interface

CAPS ships with a read-only web interface which lists the available data streams, shows waveforms and allows downloading which provides server statistics in separate perspectives.

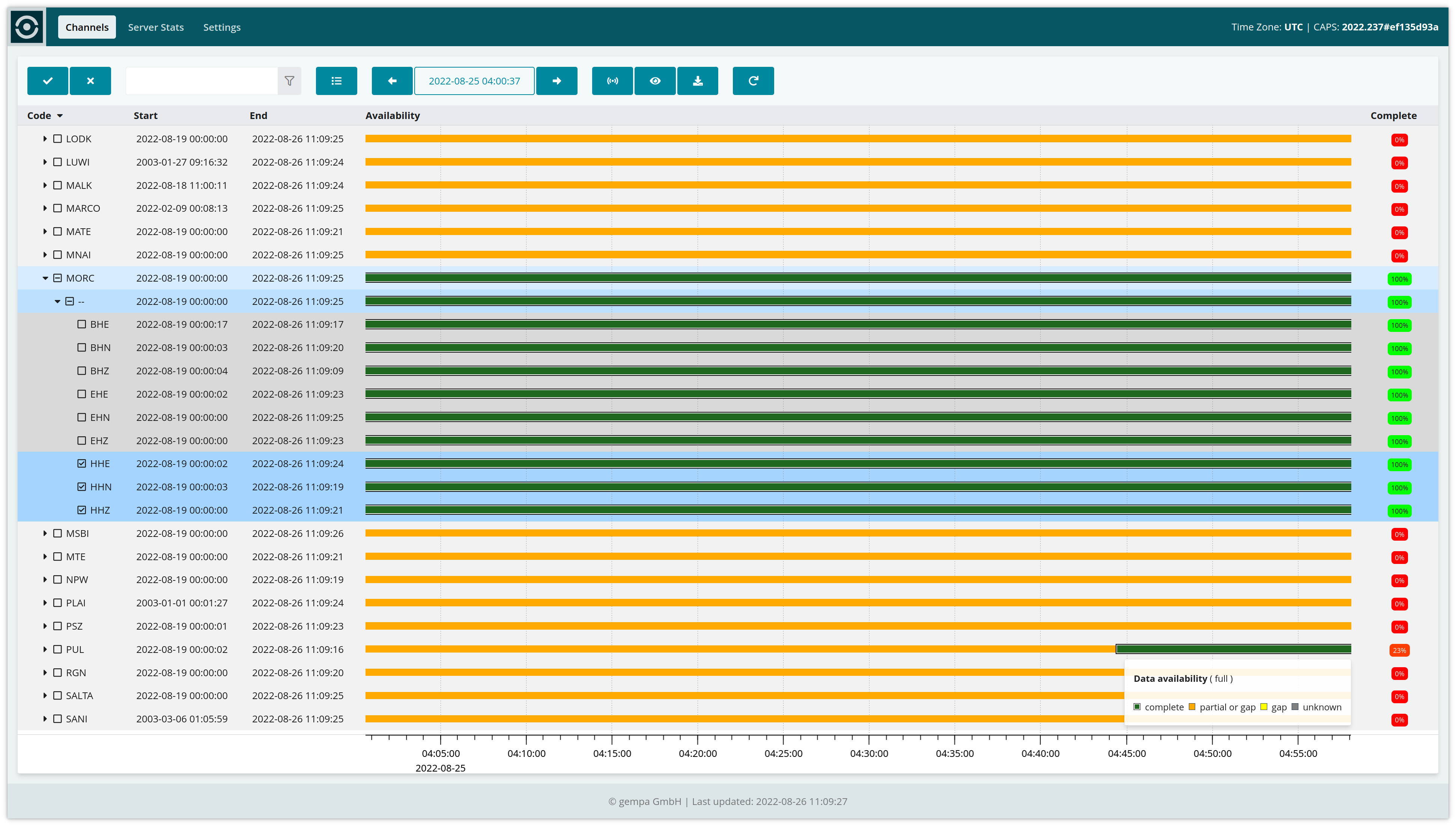

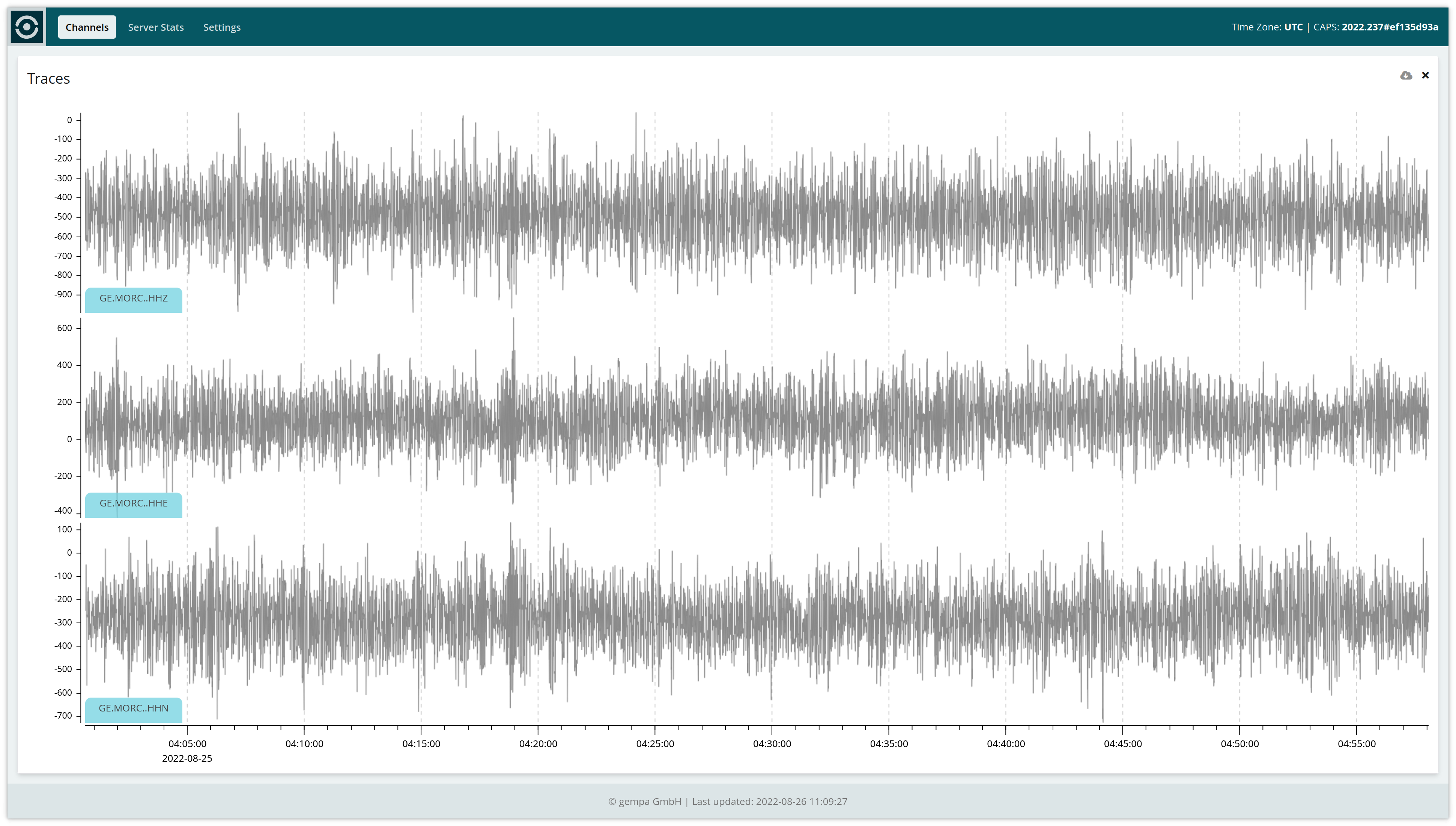

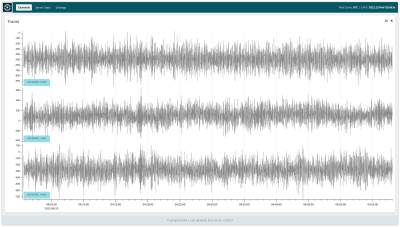

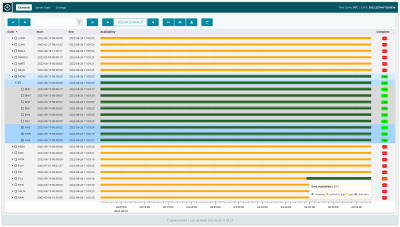

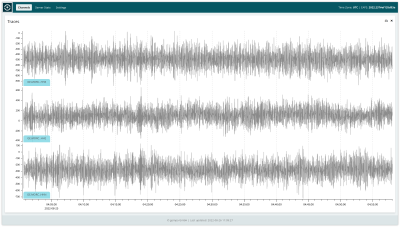

  • The Channels perspective lists all data streams of your entire CAPS archive - this may just a view hours or event years. The time windows of available data are displayed when zoom status bars in time. The list may be filtered to easily find the streams of interest. Real-time waveform data and data from archive can be instantly viewed for channels selected interactively.

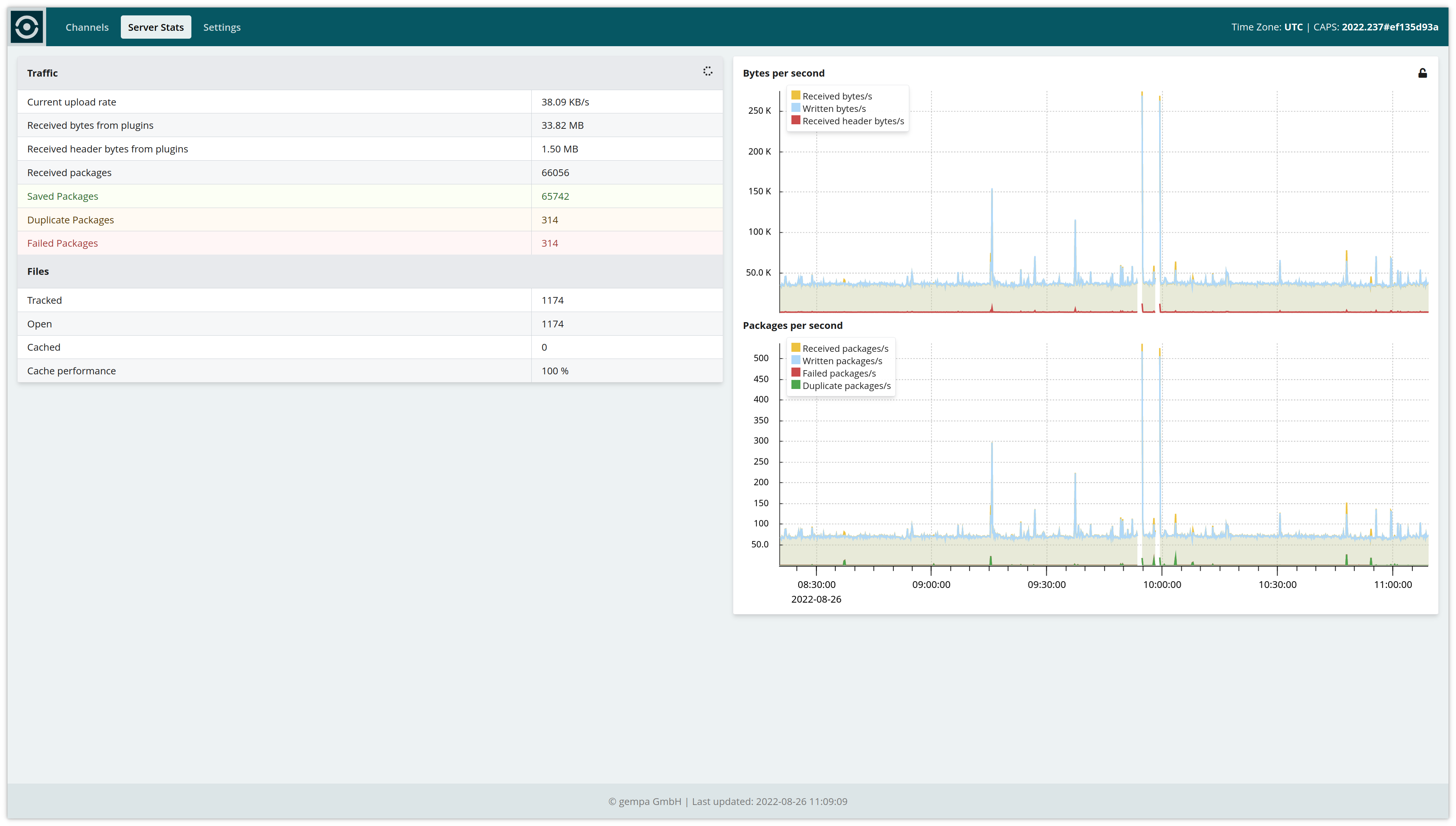

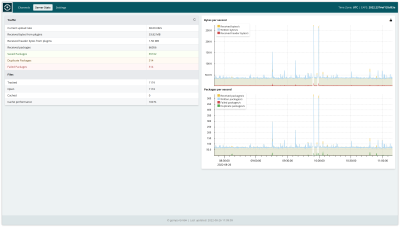

  • The Server stats perspective provides information on data traffic such as current upload rate, received bytes and packages. On the right side the same traffic data is displayed as live charts allowing to instantly recognize changes in the data flow.

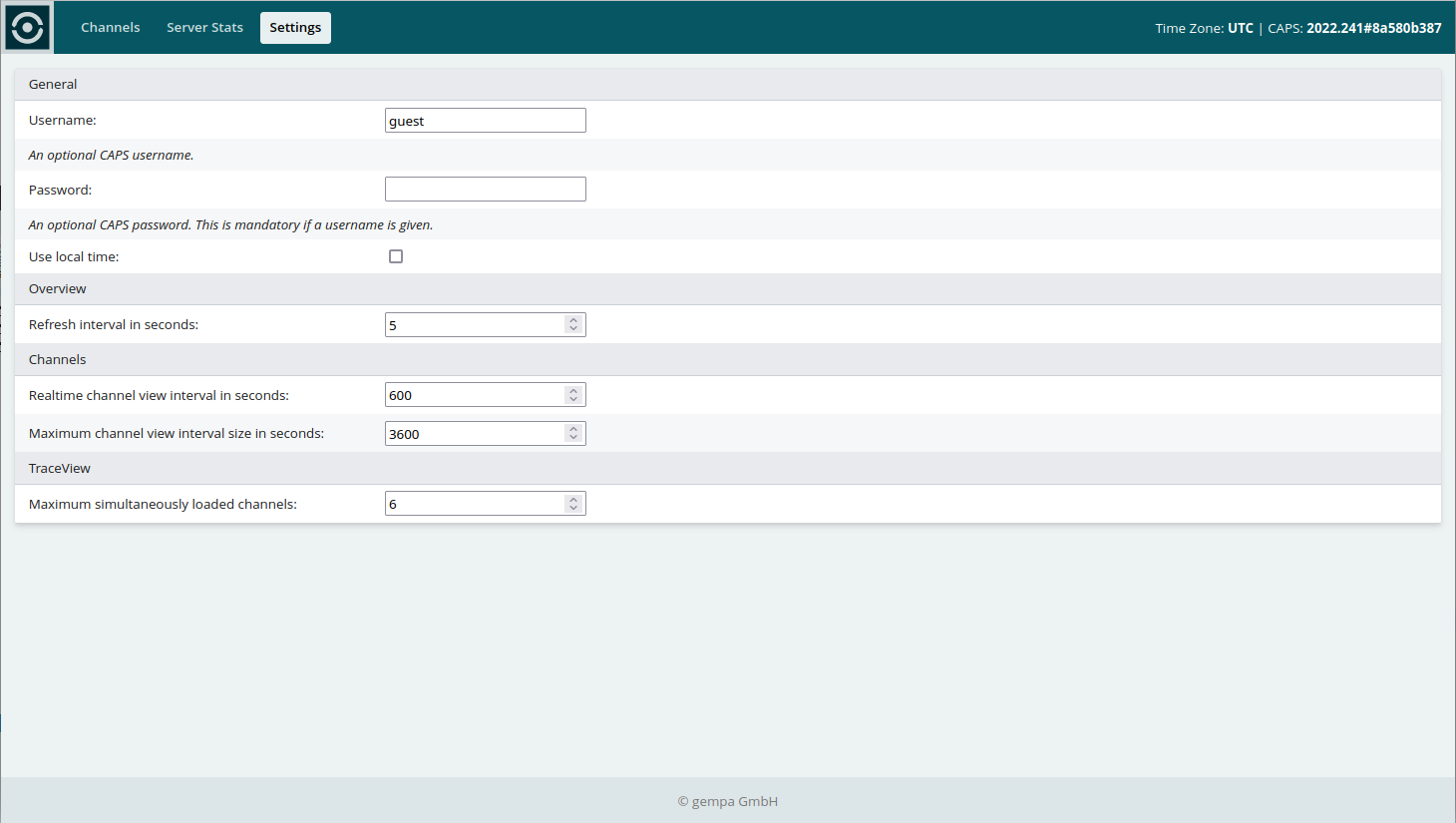

  • In Settings display preferences and connection parameters may be adjusted.

Demo

Configuration

CAPS is developed as a standard SeisComP application. It uses the SeisComP infrastructure for startup and configuration. A GUI application simplifies the setup and configuration tasks. In addition we offer a full featured web based configuration interface allowing you to control your installation from anywhere using any device running a web browser.

Plugins

Since CAPS entered the market many more plugins have been developed for transferring data from multiple sources and in different formats reaching beyond the available SeedLink plugins . For new data sources and format plugins can be easily developed and added. The most import existing plugins are:

  • caps2caps: Mirrors data between different CAPS instances,
  • gdi2caps: Collects data from a Güralp digitizer with the Güralp Data Interconnect protocol,
  • ntrip2caps: Receives GPS data from a NTRIP Caster,
  • rs2caps: Collects data from a SeisComP RecordStream. This plugin is very flexible since various data sources are already available through the SeisComP RecordStream interface,
  • rtpd2caps: Imports data from a RTPD server (REF TEK),
  • slink2caps: Re-use of SeedLink plugins , e.g., Chain, NAQS, WIN, SCREAM,
  • sproc2caps: Processes and renames data before sending to the CAPS server,
  • v4l2caps: Connects an image or video device, e.g., a webcam.
